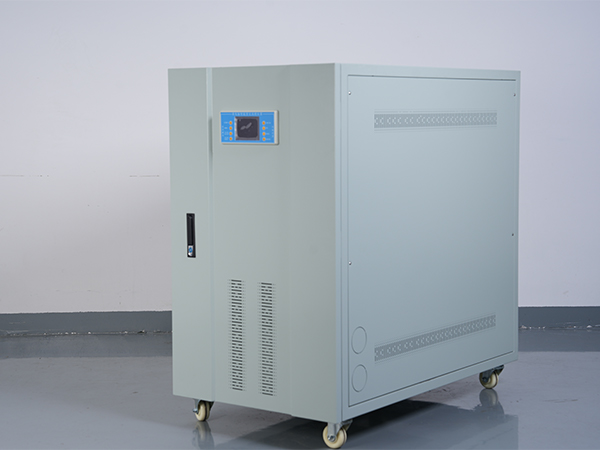

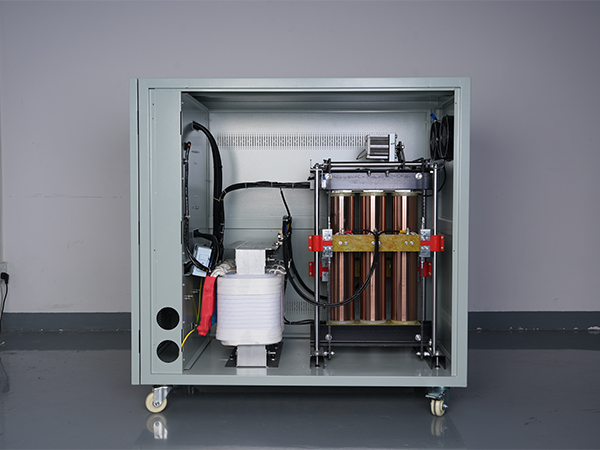

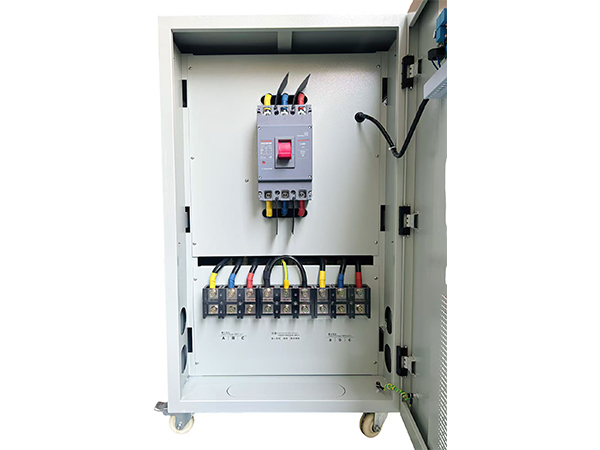

SBW High-Power Compensated Voltage Stabilizer

Product profile
Technical parameter
Specifications

SBW series single,three-phase power compensation regulator is adopting international advanced technology in Western Europe,combined with China's national conditions,to stabilize the AC voltage and design.When the external power supply network voltagefluctuations or load changes caused by voltage fluctuations,can automatically maintain output voltage stability,this product compared with other types of regulator having a large capacity,high efficiency,no waveform distortion,stable voltage regulation,load extensive,long-term continuous operation,automatic,manual random switching,easy touse features.

Products are widely used in large-scale mechanical and electrical equipment,metal processing equipment,production lines, elevators,medical equipment,embroidery textile equipment,air conditioners,radio and television,household appliances and building lighting in the fields of industry,transportation,post and telecommunications,national defense,railways,scientific research,etc.Electricalequipment that requires stable voltage.

Productname	SBWHigh-PowerCompensatedVoltageStabilizer
Frequency	50/60Hz
Inputvoltage	AC 380V±15%
Outputvoltage	AC 380V±2%
Voltage stbilizing accuracy	±1%-5% Adjustable
Reactiontime	Whentheinputvoltagejumpiswithin10V,thereactiontimeis2s
Voltageregulationmode	Threephasecompensationindependenregulation
Protectionfunction	ndrcamti oeraunseryliragena aran.shotaeuie puofeicnou.nderpoad pro
Insulationgrade	GradeF
Loadtest	EN-61558-2-4/EC-204
Voltagerisetest	ThereisnoabnormalityinAC2500V/minbetweencoilandironcore
Temperature rise	Underfullad continuous operation,thetemperature of eachwinding and ron corein summeris≤60℃
Insulationresistance	>5MQ
Workefficiency	>98%
Overloadcapacity	Thesystemrunswith100%excessloadforoneminute
Noise	Within50dB/1m
Temperature	Storagetemperature-20-60℃,Workingtemperature-10-40℃
Humidity	30-90%nocondensation
Degreeofprotection	IP20
Coolingmode	Dryaircooling
Executivestandard	JB/8749.8-2014
Designlife	20Years
