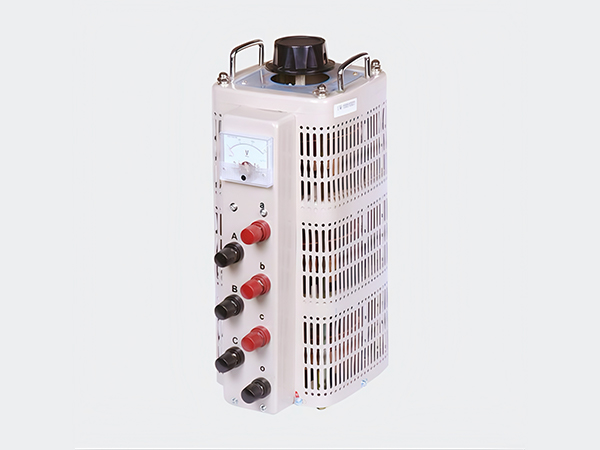

TDGC,TSGC contact voltage regulator continuously adjustable output voltage,with no waveform distortion,small size,light weight,high efficiency,easy to use,reliable,long-term operation,etc.,to achieve voltage,temperature,speed,dimmingand other control purposes.
The series of single,three-phase voltage regulator is widely used in chemical industry,metallurgy,instrumentation,electrical and mechanical manufacturing,light industrial,scientific experiments,utilities,household appliances,temperature control,dimming and power control and so on,is an ideal AC voltage supply.
|
Productname |
Contact Voltage Regulator |
|
|
Roduct capacity |
single-phase |
0.5KVA-50KVA |
|
three-phase |
3KVA-500KVA |
|
|
Frequency |
50/60HZ |
|
|
Input voltage |
single-phase 220V/three-phase380V |
|
|
Output voltage |
0-250V Adjustablesingle-phase/three-phase 0-430Vadjustable(non-standard can becustomized) |
|
|
Waveform distortion |
no additional distortion |
|
|
Temperaturerise |
≤60℃ |
|
|
Work efficiency |
≥98% |
|
|
Dielectric strength |
2000V/min |
|
|
Insulation resistance |
>5MQ |
|
|
adjustmentt |
manual/automatic |
|
