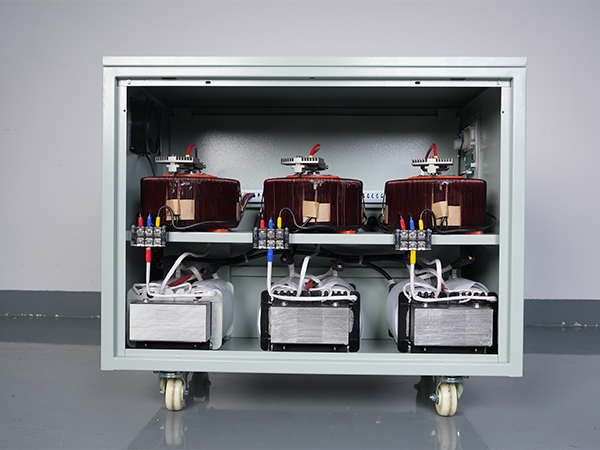

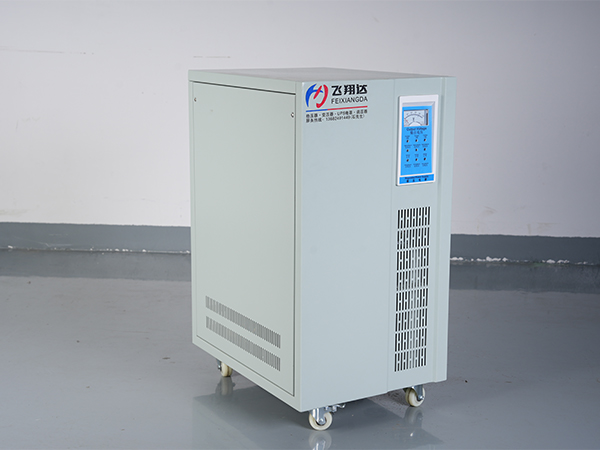

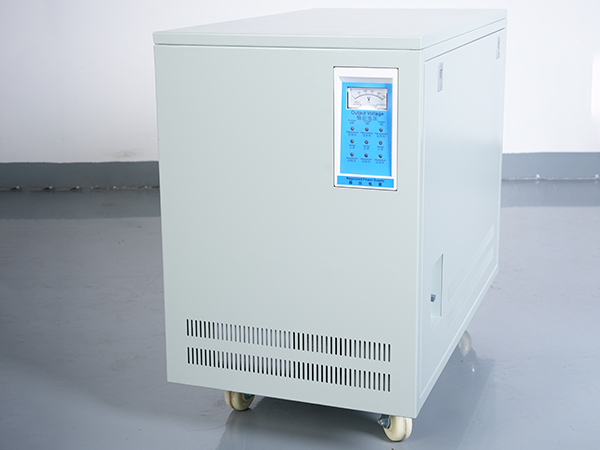

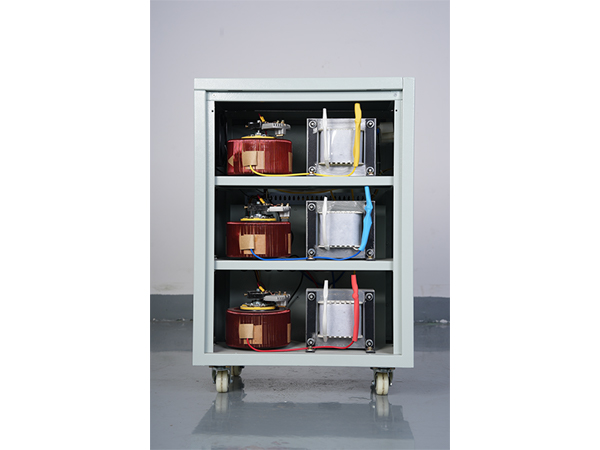

TND single-phase high-precision fully automatic AC voltage regulator

Product profile
Technical parameter
Specifications

AVR single-phase series high-precision automatic AC regulator is an industrial single-phase high-precision regulator developed by Feixiangda combined with the requirements of domestic enterprises single-phase industrial precision equipment,when the input voltage or load of the city power grid fluctuates or changes,the automatic control system samples,compares.amplifies and sends a signal to the drive motor to change the position of the voltage regulator carbon brush,the output voltage of the regulator is adjusted to set the output value so as to achieve voltage stabilization.

This series of voltage regulators can be used for all single-phase precision equipment that need voltage stabilization,such as laser
cutting machine,manipulator,automation equipment,two-dimensional element,three-dimensional coordinate,testing equipment,server,computer,medicalequipment,scientific research institutions,etc.

The voltage regulator has the following characteristics:
1.High voltage stabilization accuracy;
2.High efficiency;
3.Stable voltage regulation;
4.It can carry resistive,inductive and capacitive loads;
5.It can withstand instantaneous overload;
6.It can work continuously for a long time;
7.It has multiple alarm functions ofhigh and low output voltage;
8.The space of voltage regulator is small.

Productname	TNDsingle-phasehigh-precisionfullyautomaticACvoltageregulator
Frequency	50/60Hz
Inputvoltage	AC220V±15%(Customizable)
Outputvoltage	AC 220V±1%
Voltage stabilizing accuracy	±1%-5% Adjustable
Reactiontime	Whentheinputvoltagejumpiswithin10V,thereactiontimeis1s
Voltageregulationmode	Discpressureregulatingcompensationtype
Protectionfunction	Automaticvoltagestabilization.high/lowveltagealarm.shortcircuitprotection
Insulationgrade	GradeF
Loadtest	EN-61558-2-4/EC-204
Voltagerisetest	AC2500V/mi betwen primaycollandsecondarycllan betwenclland ron coe isormal
Temperature rise	Unerfullad continuous operation,he temperatur ofeach windingan iron corinsummeris≤70℃
Insulationresistance	≥100MQ
Workefficiency	≥95%
Overloadcapacity	The system runs with 100% excess load for one minute
Noise	Within50dB/1m
Temperature	Storagetemperature-20-60℃,Workingtemperature-10-40℃
Humidity	30-90%nocondensation
Degreeofprotection	IP20
Coolingmode	Dryaircooling
Executivestandard	JB/T 10089/Q/KJB001;GB4376-1984
Designlife	20Years
