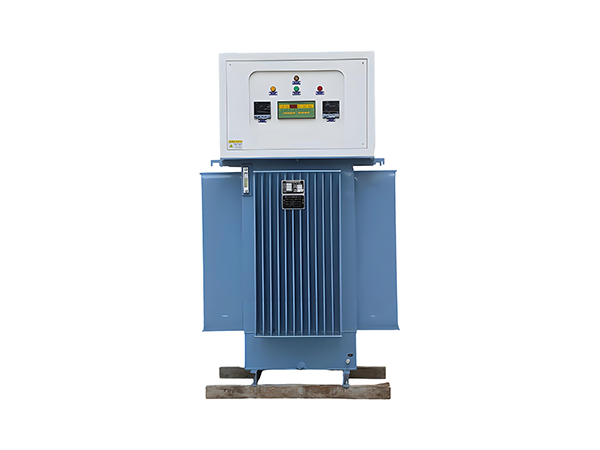

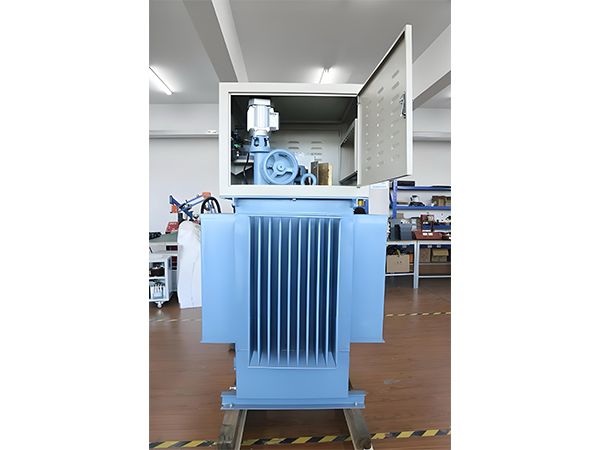

Oil-immersed Voltage Stabilizer
Oil-immersed Voltage Stabilizer
  • Product profile
  • Technical parameter

The oil-immersed voltage stabilizer is designedd by our factory by introducing and absorbing advanced technologies at home and abroad,while combining with China's national conditions,aiming to stabilize alternating voltage.When voltage fluctuations in the external power supply network or load changes cause voltage fluctuations in the circuit,it can automatically and accurately output stable voltage.

Compared with other types of voltage stabilizers,this series of products features large capacity,high efficiency,no waveform distortion,stable voltage regulation,wide applicability to loads,capability of withstanding instantaneous overload and long-term continuous operation,arbitrary switching between manual and automatic modes,and is equipped with automatic alarm devices for overvoltage,undervoltage,overcurrent,phase loss,and mechanical failures.It also has the advantages of convenientinstallation, reliable operation,etc.It can be widely applied to all voltage-stabilization-required scenarios,including large electromechanical equipment,metal processing equipment,elevators,medical devices,micro-motor equipment,computer-controlled equipment, embroidery and textile equipment,color printing equipment,air conditioners,broadcasting and television systems,as well as general electric lighting in tunnels in industries such as industry,agriculture,transportation,post and telecommunications,military, railway,scientific research,and culture.

Productname

Oil-immersed Voltage Stabilizer

Rated capacity

100-3000KVA

Number of Phases

Three-Phase

Input Range

310-450V

Output voltage

308V±10% Adjustable

Efficiency

≥98%

Frequency

50/60HZ

Response speed

2±5% Adjustable

Insulation grade

F/H Grade

Insulation resistance

>5MO

Withstand Voltage Test

3500V/min

Waveform Distortion

S0.1%

Display Mode

Analog Meter Display

OperationMode

Analog Meter Display

Protection Function

Voltage Limiting、Alarm

Cooling Method

Oil Cooling
