Our company adopts high-performance foil-type winding structure for this product,which has small DCresistance,strong short - circuit resistance,and large short-time overload capacity.The use of high-performance F grade and above composite insulation materials,so that the product can still maintain reliable performance under harsh working conditions;The reactor is designed with low flux density,good linearity,strong overload capacity,and vacuum pressure paint immersion process.The core is made of high - quality and low-loss cold-rolled silicon steel sheet,the reactor loss small,low noise,high efficiency.At the same time,it has the characteristics of small volume,compact structure,reasonable design and convenient installation.
|

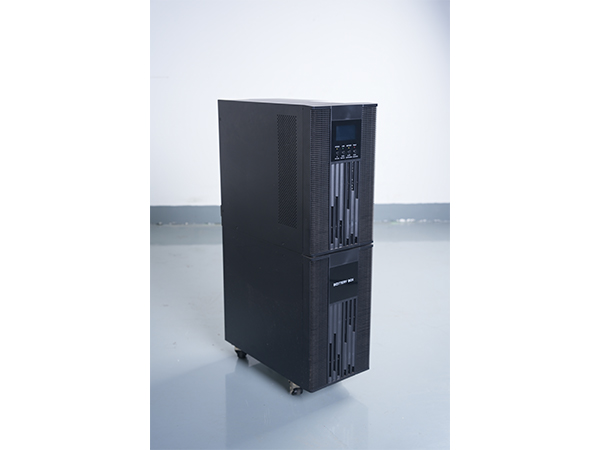

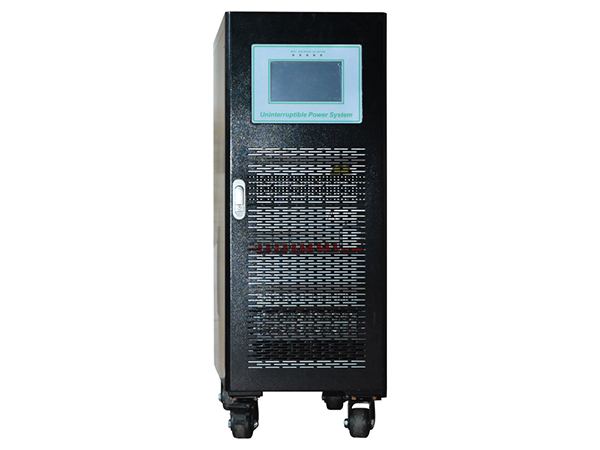

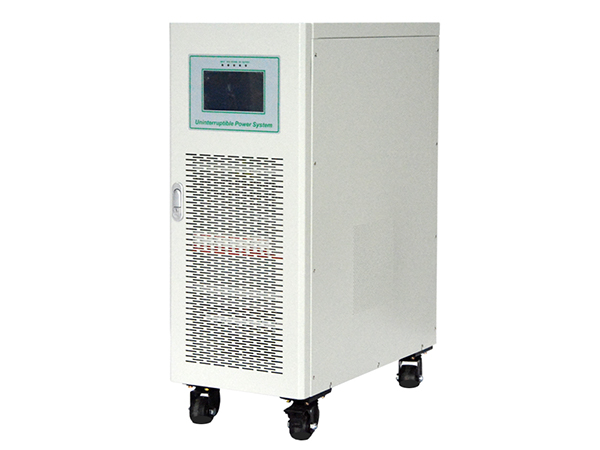

ProductCapacity(Customizable) |
10KVA |
15KVA |
20KVA |
30KVA |
40KVA |
50KVA |
60KVA |
80KVA |
80KVA |
80KVA |
|
|
Working Mode and Principle |
Online power supply staticbypasswitch(uninterupted switching),dual conversion technology,completeisolationofoutputpowersupply |
||||||||||
|

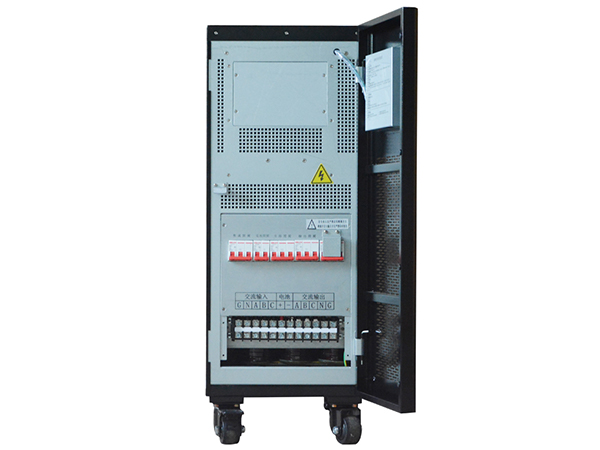

ACInput |
Number of Phases |
Three-phase+N+G |
|||||||||
|
Voltage |
380V±20% |
||||||||||
|
Frequency |
50Hz±15% |
||||||||||
|
Single-phase Maximum Current(A) |
25 |
33 |
40 |
55 |
71 |
86 |
102 |
113 |
164 |
195 |
|
|
Power Factor |
0.95(when there isaninputfilter) |
||||||||||
|
Soft Start |
0-100%1sec |
||||||||||
|
Roadside Input |
Voltage |
380v±15% |
|||||||||
|
Voltage |
50Hz±5% |
||||||||||
|
Voltage |
0msInverter/Bypass(Overload)Oms |
||||||||||
|
DCSystem |
DC Voltage |
384V(Battery12V32节) 384V/396V(12V32节/33节) |
|||||||||
|
Float Charge Voltage |
432V |
446V |
|||||||||
|
Cut-ff Voltage |
336V |
347V |
|||||||||
|
MaximumDischargeCurrent(A) |
25 |
42 |
56 |
85 |
113 |
141 |
169 |
225 |
282 |
338 |
|
|
Charging Current |
10-25A(adjustable) |
||||||||||
|
AC Output |
Number of Phases |
Three-phase+N+G |
|||||||||
|
Voltage |
380±1%(stableload) |
||||||||||
|
Frequency |
50Hz±5%(mainspower)50Hz±0.05%(battery-powered) |
||||||||||
|
Load PowerFactor |
0.8(Lagging) |
||||||||||
|
Output Waveform |
sine wave |
||||||||||
|
Total Harmonic Distortion |
Linear load:<3%,Non-linear load:<5% |
||||||||||
|
Dynamic Load Voltage Transient |
±5% Upward step changefromOto100% |
||||||||||
|
Transient Recovery Time |
<20ms±5% |
||||||||||
|
Unbalanced Voltage |
±1%(Balanced loadvoltage) |
||||||||||
|
Overload Capacity |
125%10min,150%1min,>150%200ms |
||||||||||
|
System Indexes |
Working Efficiency |
91%.95%ECO Economic operationmode |
|||||||||
|
Computer Communication Interface |
RS232/RS422 |
||||||||||
|
Operating Temperature |
0-40℃ |
||||||||||
|
Relative Humidity |
0~90% No condensation |
||||||||||
|
Noise |
50db |
55db |
63db |
65db |
68db |
||||||
